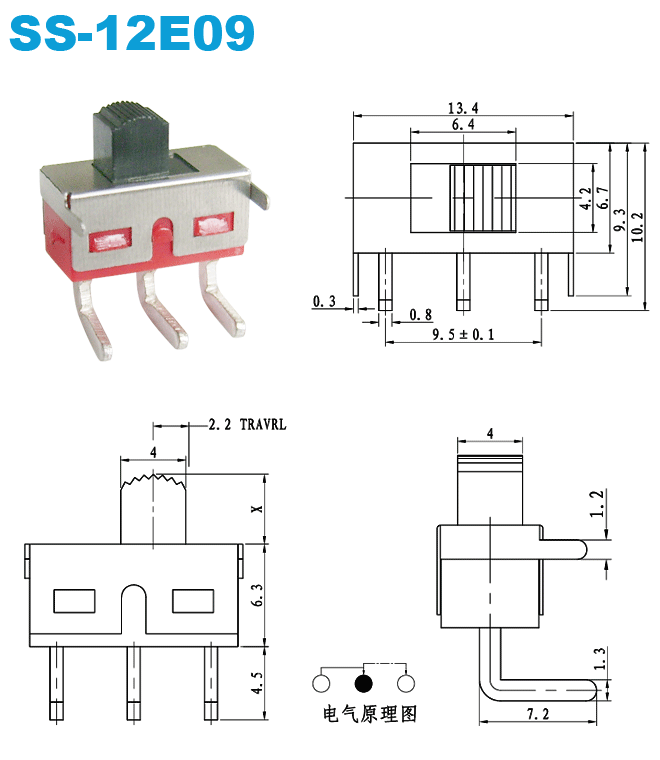

SS-12E09(1P2T)
Date：2015/1/17 Read：5036
Product introduction：
工作温度范围Operating temperature range：-30℃ to+85℃ 额定电流Rating：3A 250V AC 绝缘电阻Insulation resistance: 100MΩ min.500V DC 接触电阻Contact resistance: 30m Ω max. 操作力度Operating fore:250±100gf 寿命Life time:10000 cycles（依产品而定)
