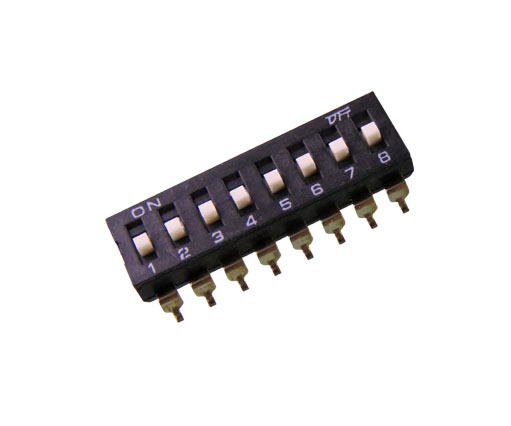

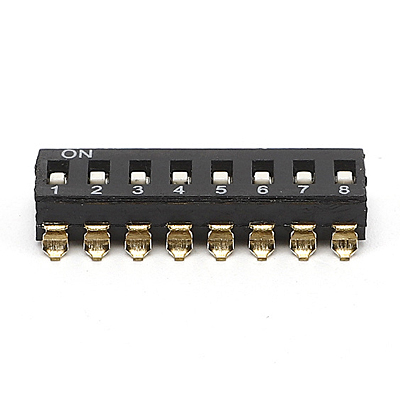

SMD-08
Date：2018/6/21 Read：3873
Product introduction：
Electrical Ratings:Switch: 25mA @ 24VDC Carry: 100mA @ 24VDC Electrical Life:2,000 cycles typical Contact Resistance:< 25 mΩ initial Actuation Force:400 gF max Actuator Travel:2.0 mm Dielectric Strength:500Vrms min Insulation Resistance:> 100MΩ min Operating Temperature Storage Temperature:-40°C to 85°C -40°C to 85°C
